Dojo Bins were created to showcase unique methods of parametric modeling within Blender Geometry Nodes. The system takes simple data inputs like drawer size to output a unique layout of parametrically controlled bins that fill the space of the specified drawer.

FEATURES:

  • Parametric input parameters

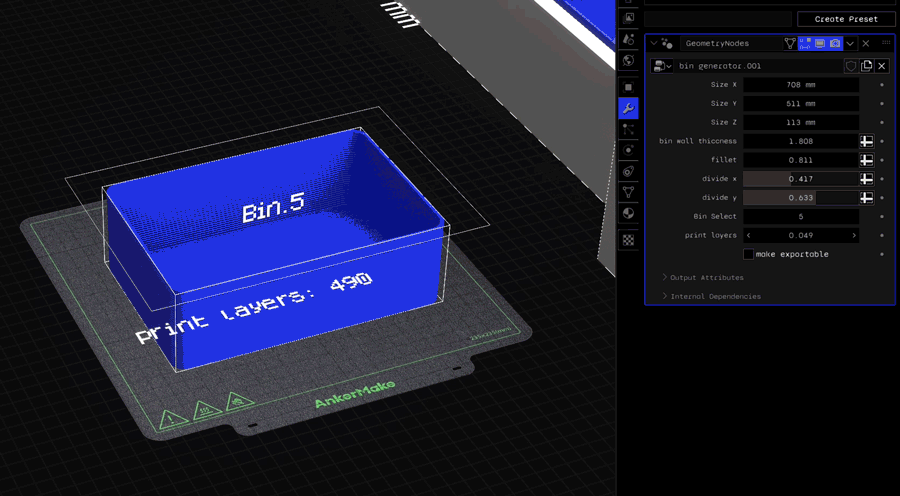

  • Live Print preview with "Layers"* and animated print previewing

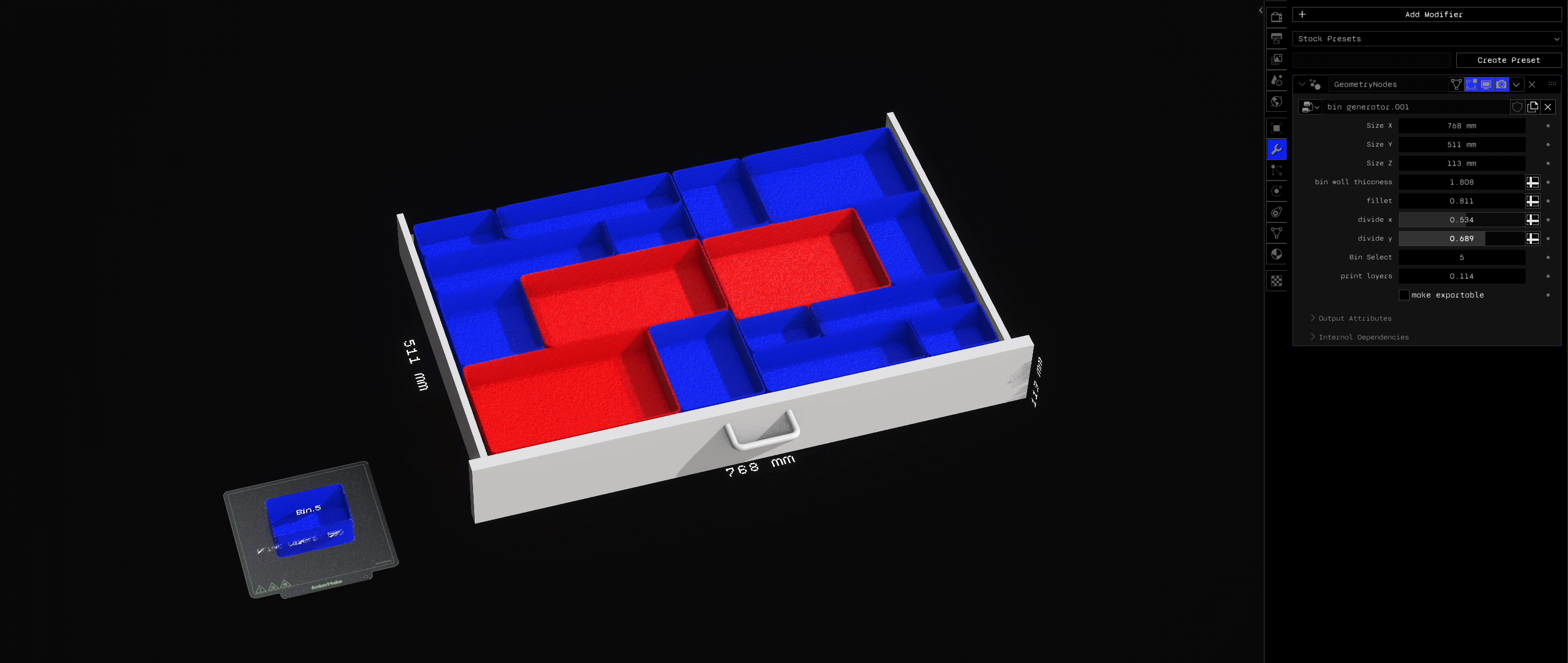

  • red bins = too big to print, blue bins = printable

MODIFIER PARAMETERS:

  • Drawer Size x, y, z, dimensions
  • Bin Wall Thiccness
  • Bin Fillet
  • divide x
  • divide y
  • Bin Select Preview
  • Print Layer Preview
  • Make Exportable.
GITHUB DOWNLOAD

WISHLIST/KNOWN ISSUES:

  • layers in print preview are not accurate to real print layers. ideally they'd be parametrically calibrated and result reflected in the preview
  • Wall thickness to be constrained to factors related to print nozzle size so that wall thiccness = number of passes per layer
  • alternative methods of controlling oversized bins
    • automatically dividing bins that go over size
    • locking the scale of the bins to a maximum edge length of ~200mm (or whatever print bed build envelope is specified)
  • allowing print bed size to be an input value
  • allowing print nozzle to be an input value
  • print output to pack as many possible bins onto print plate as possible (instead of the current 1 bin output method)
  • freeze/save output of bin layouts
  • add bin gap size as modifier parameter
  • some values are arbitrary. tie them back to real world units when possible.

$
